PREVIEW OF SAMPLE MODELS. TOOLS USED: INVENTOR & AUTOCAD
From Simple part to folded part of complex shape. From simple 2 part assembly to 100 parts Assembly - No Job is too small or too big.
Pedestrian gate on left, Fixed door in centre and sliding door on right. See Animation below for movement.
6 Frames joint together through pole. Each frame has different cross members.
Simple Balcony with balustrade post. 3 Timber are existing whereas new are galvanised.
Hand Rails and Balustrades on different levels and angles.
Auto Gate with 1 deg slope.
Outback seating arrangement looking from ground. Wavy profile of slats and members was big challenge.
Kitchen top with cut out at top and bottom to fit into wall. (Custom modelling to suit)
90deg L shaped Kitchen table with splashback
Container with tanker on top and walls hidden to show internal components
Other side of container showing doors and open position

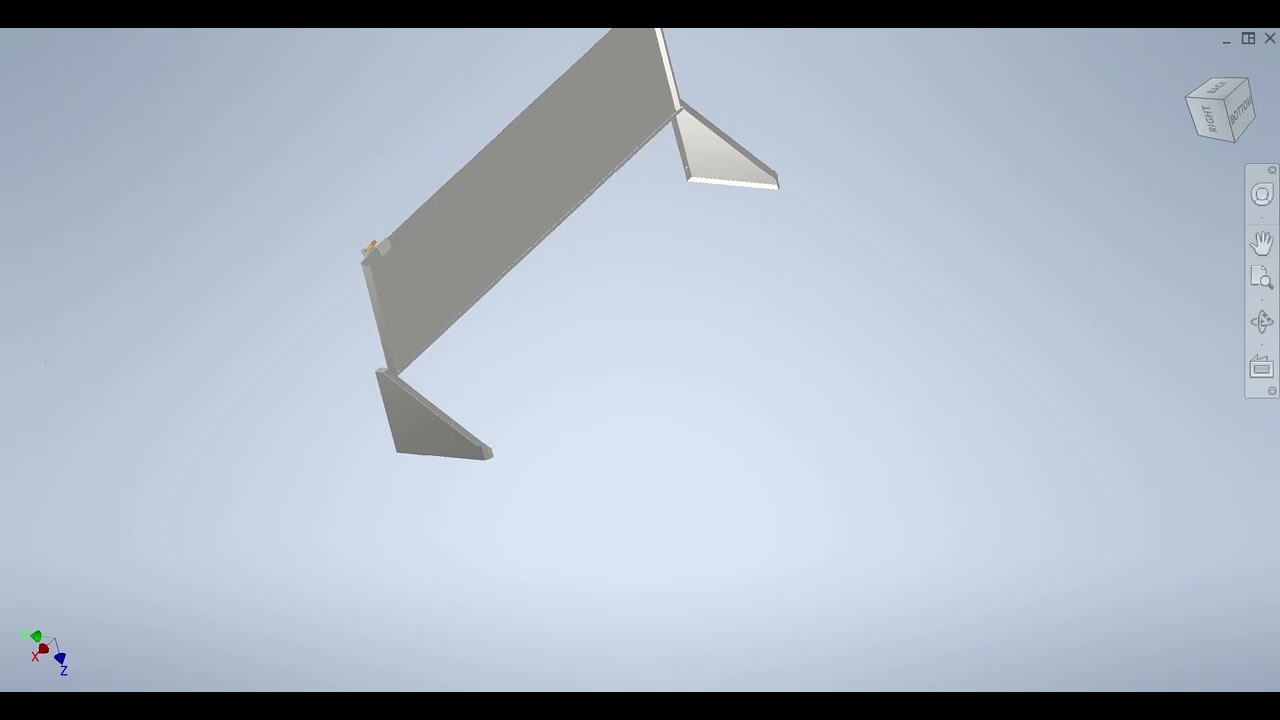

Typical ballistic wall on the top of range. L shape plate are lifting points
2 Stage Pergola with beams and rafters.
3 Step Pergola on a slope.
Hopper head with hooks for grill
Different shaped hand rail and balustrades as per site request and block.
Folded sink top with multiple folds
Flat pattern of folded sink top
Number pad for the gates with extrusion and mirror feature
Simple rolled RHS

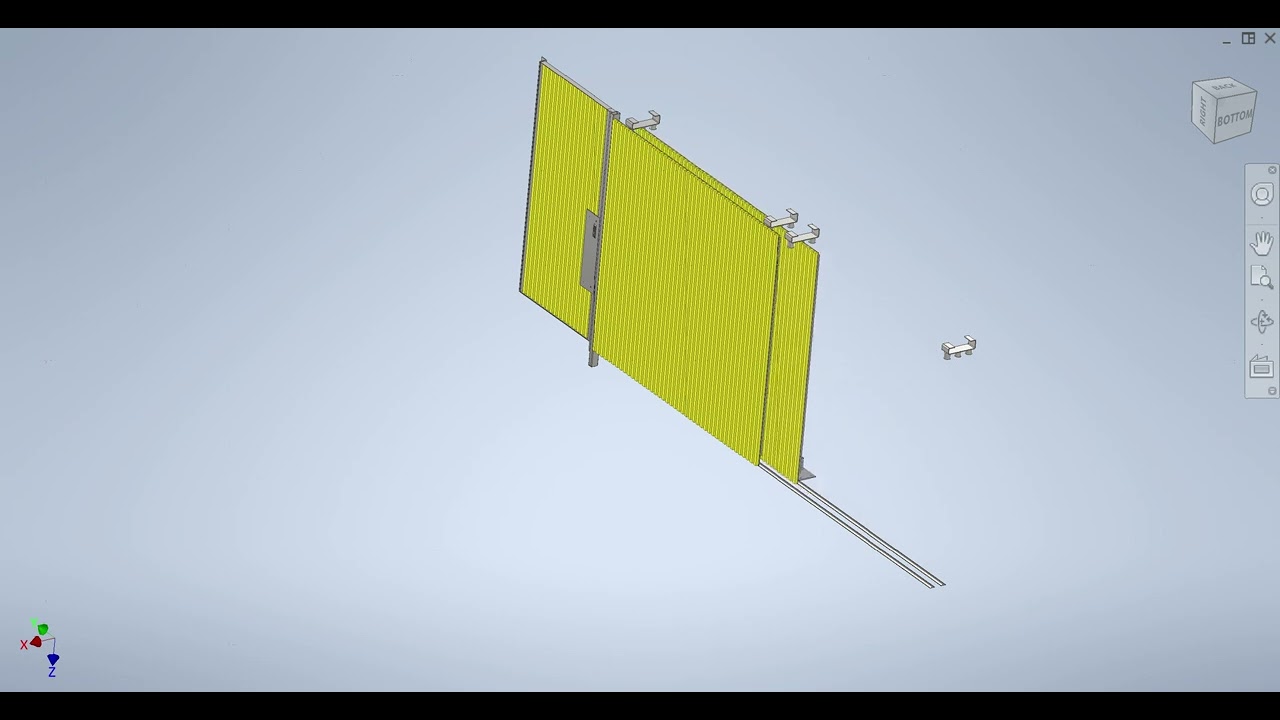

Animation of door in open and closed position. Top rollers are attached to existing walls hence stays as there whilst door is in motion.
While the gates were lateral movement, the lid here is constraint to angular movement. Most lids on tool box or others use this with hinge as pivot point. Animation give you true visiualisation of parts.
